Shurflo Pump Diaphragm Drive Assembly – Replacement Pump Spare Part

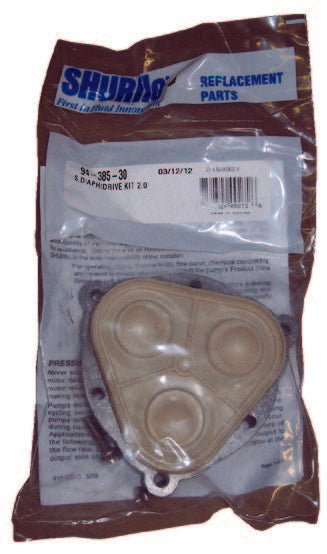

Diaphragm Drive Assembly – Replacement Component for Shurflo Pumps

The Diaphragm Drive Assembly for Shurflo Pumps is a replacement pump component designed for compatible Shurflo diaphragm pumps used in carpet extraction machines, professional cleaning equipment and other pump-operated systems.

The diaphragm drive assembly forms part of the pump's internal operating mechanism, helping transfer mechanical movement to the diaphragm to support the pumping action and delivery of cleaning solution.

Over time, internal pump components can become worn or damaged through regular use, potentially affecting pump performance, pressure and solution delivery. Replacing a faulty diaphragm drive assembly can help restore the operation of a compatible Shurflo pump without requiring replacement of the complete unit.

Ideal for professional carpet cleaners, water damage restoration technicians and cleaning equipment service centres, this replacement assembly provides a practical solution for maintaining and repairing compatible Shurflo pump systems.

Key Features

• Shurflo Diaphragm Drive Assembly – Replacement internal component for compatible Shurflo diaphragm pumps.

• Supports Pump Operation – Transfers mechanical movement to the diaphragm to support the pumping process.

• Maintains Pump Performance – Helps restore proper pump operation when replacing a worn or damaged assembly.

• Replacement Pump Component – Ideal for servicing faulty or worn diaphragm drive mechanisms.

• Cleaning Solution Delivery – Supports the operation of compatible pump systems used in extraction equipment.

• Cost-Effective Maintenance – Replace the damaged assembly rather than the complete pump where appropriate.

• Professional Cleaning Applications – Suitable for compatible carpet extraction and pump-operated cleaning equipment.

• Equipment Repairs – Practical spare part for pump servicing and maintenance.

Specifications

• Product Type: Diaphragm Drive Assembly / Pump Replacement Part

• Brand Compatibility: Shurflo

• Component Type: Internal Diaphragm Drive Assembly

• Compatible Equipment: Compatible Shurflo Diaphragm Pumps

• Function: Drives Diaphragm Movement Within the Pump

• Application: Pump Repairs, Carpet Extraction Equipment & Cleaning Equipment Maintenance

• Supply: Diaphragm Drive Assembly
